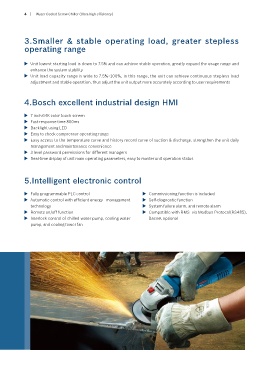

Page 4 - 2016-08_Catalogue_Water cooled screw chiller(ultra-high efficiency)_Southeast Asia

4 | Water Cooled Screw Chiller (Ultra-high efficiency)

3.Smaller & stable operating load, greater stepless
operating range

Unit lowest starting load is down to 7.5% and can achieve stable operation, greatly expand the usage range and
enhance the system stability
Unit load capacity range is wide to 7.5%~100%, in this range, the unit can achieve continuous stepless load
adjustment and stable operation, thus adjust the unit output more accurately according to user requirements

4.Bosch excellent industrial design HMI

7 inch 64K color touch screen
Fast response time 800ms
Backlight using LED
Easy to check compressor operating range
Easy access to the temperature curve and history record curve of suction & discharge, strengthen the unit daily
management and maintenance convenience
3 level password permissions for different managers
Real-time display of unit main operating parameters, easy to master unit operation status

5.Intelligent electronic control

Fully programmable PLC control Commissioning function is included
Automatic control with efficient energy management Self-diagnostic function
technology System failure alarm, and remote alarm
Remote on/off function Compatible with BMS via Modbus Protocol(RS485),
Interlock control of chilled water pump, cooling water Bacnet optional
pump, and cooling tower fan
