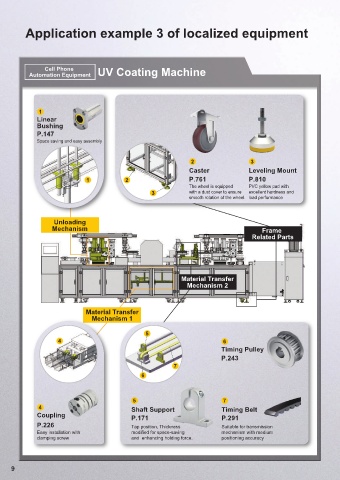

Application example 3 of localized equipment
Automation Equipment UV Coating Machine
Cell Phone
Linear
Bushing
P.147
Space saving and easy assembly
Caster Leveling Mount
P.761 P.810
The wheel is equipped PVC yellow pad with
with a dust cover to ensure excellent hardness and
smooth rotation of the wheel. load performance
Unloading
Mechanism Frame
Related Parts
Material Transfer
Mechanism 2
Material Transfer
Mechanism 1
5
4 6
Timing Pulley
P.243
7
6
5 7
4 Shaft Support Timing Belt
Coupling P.171 P.291
P.226 Tap position, Thickness Suitable for transmission
Easy installation with modified for space-saving mechanism with medium
clamping screw and enhancing holding force. positioning accuracy
