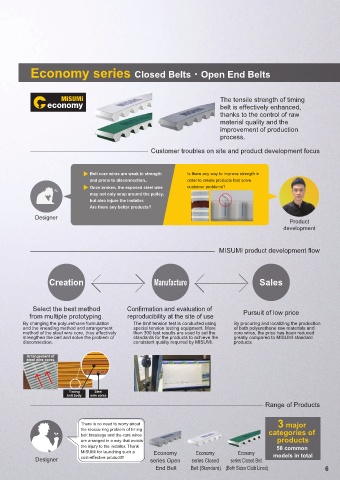

Page 7 - MiSUMi FA Mechanical Components Economy Series

Economy series Closed Belts ٥Open End Belts

The tensile strength of timing
belt is effectively enhanced,
thanks to the control of raw
material quality and the
improvement of production
process.

Customer troubles on site and product development focus

Belt core wires are weak in strength Is there any way to improve strength in
and prone to disconnection.. order to create products that solve
Once broken, the exposed steel wire customer problems?
may not only wrap around the pulley,
but also injure the installer.
Are there any better products?
Designer
Product
development

MISUMI product development flow

Creation Manufacture Sales

Select the best method Confirmation and evaluation of Pursuit of low price
from multiple prototyping. reproducibility at the site of use
By changing the polyurethane formulation The limit tension test is conducted using By procuring and localizing the production
and the kneading method and arrangement special tension testing equipment. More of both polyurethane raw materials and
method of the steel wire core, they effectively than 300 test results are used to set the core wires, the price has been reduced
strengthen the belt and solve the problem of standards for the products to achieve the greatly compared to MISUMI standard
disconnection. consistent quality required by MISUMI. products.
Arrangement of
steel wire cores

Timing Steel
belt body wire cores
Range of Products

There is no need to worry about 3 major
the reoccurring problem of timing
belt breakage and the core wires categories of
are arranged in a way that avoids products
the injury to the installer. Thank 58 common
MISUMI for launching such a Econom Economy Economy
Economy y
Designer cost-effective product!!! series Open series Closed series Closed Belt models in total
End Belt Belt (Standard) (Both Sides Cloth Lined) 6
