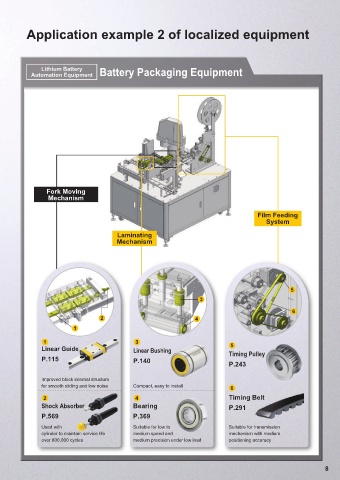

Application example 2 of localized equipment
Lithium Battery
Automation Equipment Battery Packaging Equipment
Fork Moving
Mechanism
Film Feeding
System
Laminating
Mechanism
5
6
4
5
Linear Guide Linear Bushing Timing Pulley
P.115 P.140
P.243
Improved block internal structure
for smooth sliding and low noise Compact, easy to install
6
4 Timing Belt
Shock Absorber Bearing P.291
P.569 P.369
Used with Suitable for low to Suitable for transmission
cylinder to maintain service life medium speed and mechanism with medium
over 800,000 cycles medium precision under low load positioning accuracy
8
