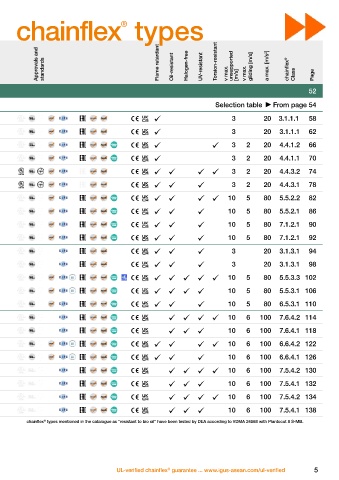

Control cables ...                                                                                                     chainflex  types
                                                                                                                                                                   ®






                                   chainflex ®     cable  Jacket  Shield       Minimum bend   radius, e-chain ®     [factor x d]  Temperature,   e-chain ®    from/to [°C]  Price index  Approvals and   standards  Flame retardant  Oil-resistant  Halogen-free  UV-resistant  Torsion-resistant  v max.    unsupported   [m/s]   v max.    gliding [m/s]  a max. [m/s 2 ]  chainflex ®     Class  Page





        Control cables                                                                                                                                                                                                               52

       Guaranteed service life for these series (Details   Page 28-29)                                                                                                                              Selection table    From page 54

                                CF880               PVC                       12.5        +5/ +70                                                                                                       3           20   3.1.1.1    58

                                CF881               PVC                      12.5        +5/ +70                                                                                                       3           20   3.1.1.1    62

                                CF130.UL            PVC                        7.5        +5/ +70                                                                                                      3     2     20   4.4.1.2    66

                                CF140.UL            PVC                       7.5        +5/ +70                                                                                                       3     2     20   4.4.1.1    70

                                CF150.UL            PVC                        7.5        +5/ +70                                                                                                    3     2     20   4.4.3.2    74

                                CF160.UL            PVC                       7.5        +5/ +70                                                                                                     3     2     20   4.4.3.1    78
                                CF5                 PVC                        6.8        +5/ +70                                                                                                   10     5     80   5.5.2.2    82

                                CF6                 PVC                       6.8        +5/ +70                                                                                                    10     5     80   5.5.2.1    86

                                CFSOFT1             PVC                         5         +5/ +70                                                                                                    10     5     80   7.1.2.1    90

                                CFSOFT2             PVC                        5         +5/ +70                                                                                                    10     5     80   7.1.2.1    92

                                CF890              iguPUR                     12.5        -20/+80                                                                                                     3           20   3.1.3.1    94

                                CF891              iguPUR                    12.5        -20/+80                                                                                                     3           20   3.1.3.1    98

                                CF77.UL.D           PUR                        6.8        -25/ +80                                                                                                 10     5     80   5.5.3.3 102

                                CF78.UL             PUR                       6.8        -25/ +80                                                                                                  10     5     80   5.5.3.1 106

                                CF2                 PUR                        5         -20/+80                                                                                                    10     5     80   6.5.3.1 110

                                CF9                  TPE                        5         -35/ +100                                                                                                 10     6   100    7.6.4.2 114

                                CF10                 TPE                       5         -35/ +100                                                                                                  10     6   100    7.6.4.1 118
                                CF9.UL               TPE                        5         -35/ +100                                                                                                 10     6   100    6.6.4.2 122

                                CF10.UL              TPE                       5         -35/ +100                                                                                                  10     6   100    6.6.4.1 126

                                CF98                 TPE                        4         -35/ +90                                                                                                  10     6   100    7.5.4.2 130

                                CF99                 TPE                       4         -35/ +90                                                                                                   10     6   100    7.5.4.1 132

                                CF98.PLUS New!       TPE                        3         -35/ +90                                                                                                  10     6   100    7.5.4.2 134

                                CF99.PLUS New!       TPE                       3         -35/ +90                                                                                                   10     6   100    7.5.4.1 138

            These values are based on specific applications or tests. They do not represent the limit of what is technically feasible.  chainflex  types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.
                                                                                                                                       ®

            Download the EPLAN library for any type of cable    www.igus-asean.com/EPLAN-download



            Get online and use all of the tools and data  www.igus-asean.com/chainflex                                                                          UL-verified chainflex  guarantee ... www.igus-asean.com/ul-verified  5
                                                                                                                                                                                   ®
