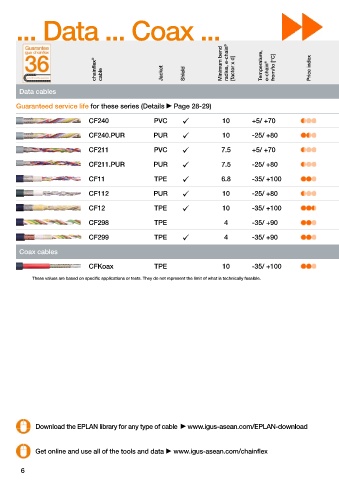

... Data ... Coax ... chainflex types
®

chainflex ® cable Jacket Shield Minimum bend radius, e-chain ® [factor x d] Temperature, e-chain ® from/to [°C] Price index Approvals and standards Flame retardant Oil-resistant Halogen-free UV-resistant Torsion-resistant v max. unsupported [m/s] v max. gliding [m/s] a max. [m/s 2 ] chainflex ® Class Page

Data cables 142

Guaranteed service life for these series (Details Page 28-29) Selection table Page 144

CF240 PVC  10 +5/ +70   3 2 20 4.4.2.1 146

CF240.PUR PUR  10 -25/ +80     3 2 20 4.4.3.1 150

CF211 PVC  7.5 +5/ +70   5 3 50 5.5.2.1 154

CF211.PUR PUR  7.5 -25/ +80     5 3 50 5.5.3.1 158

CF11 TPE  6.8 -35/ +100    10 6 100 6.6.4.1 162

CF112 PUR  10 -25/ +80     10 5 80 6.5.3.1 166

CF12 TPE  10 -35/ +100    10 6 100 6.6.4.1 170

CF298 TPE 4 -35/ +90     10 6 100 7.5.4.2 172

CF299 TPE  4 -35/ +90    10 6 100 7.5.4.1 174

Coax cables

CFKoax TPE 10 -35/ +100   10 5 100 6.6.4.1 176

®
These values are based on specific applications or tests. They do not represent the limit of what is technically feasible. chainflex types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.

36-month chainflex guarantee
®
Guaranteed service life for predictable reliability
 Selection table page 144
Download the EPLAN library for any type of cable www.igus-asean.com/EPLAN-download
With the help of the chainflex service life calculator, you can quickly and easily
®
calculate the expected service life of chainflex cables specifically for your application:
®
Get online and use all of the tools and data  www.igus-asean.com/chainflex www.igus-asean.com/chainflexlife
