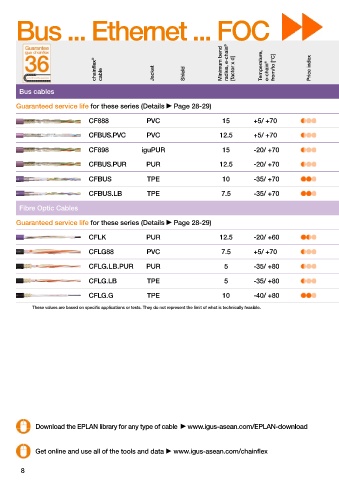

Bus ... Ethernet ... FOC                                                                                               chainflex  types
                                                                                                                                                                   ®






                                   chainflex ®     cable  Jacket  Shield       Minimum bend   radius, e-chain ®     [factor x d]  Temperature,   e-chain ®    from/to [°C]  Price index  Approvals and   standards  Flame retardant  Oil-resistant  Halogen-free  UV-resistant  Torsion-resistant  v max.    unsupported   [m/s]   v max.    gliding [m/s]  a max. [m/s 2 ]  chainflex ®     Class  Page





        Bus cables                                                                                                                                                                                                                 180

       Guaranteed service life for these series (Details   Page 28-29)                                                                                                                                   Selection table    Page 182


                                CF888               PVC                        15         +5/ +70                                                                                                       3           20   3.1.1.1 188

                                CFBUS.PVC           PVC                       12.5        +5/ +70                                                                                                     3     2     30   4.3.2.1 192

                                CF898              iguPUR                      15         -20/ +70                                                                                                    3           20   3.1.3.1 196

                                CFBUS.PUR           PUR                       12.5        -20/ +70                                                                                                   3     2     30   4.3.3.1 200

                                CFBUS                TPE                       10         -35/ +70                                                                                                   10     6   100    6.6.4.1 204


                                CFBUS.LB             TPE                       7.5        -35/ +70                                                                                                   10     6   100    7.6.4.1 210

        Fibre Optic Cables                                                                                                                                                                                                          214

       Guaranteed service life for these series (Details   Page 28-29)                                                                                                                                   Selection table    Page 218

                                CFLK                PUR                       12.5        -20/ +60                                                                                                   10     5     20   5.3.3.1 220

                                CFLG88              PVC                        7.5        +5/ +70                                                                                                       3           20   3.1.1.1 222

                                CFLG.LB.PUR         PUR                         5         -35/ +80                                                                                                  10     6     20   6.5.3.1 224


                                CFLG.LB              TPE                        5         -35/ +80                                                                                                   10     6     20   7.5.4.1 228

                                CFLG.G               TPE                       10         -40/ +80                                                                                                   10     6     20   7.6.4.1 232

            These values are based on specific applications or tests. They do not represent the limit of what is technically feasible.  chainflex  types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.
                                                                                                                                       ®


















                                                                                                                              36-month chainflex  guarantee
                                                                                                                                                   ®
                                                                                                                              Guaranteed service life for predictable reliability
                                                                                                                               Selection table page 182 (Bus) and page 218 (FOC)
             Download the EPLAN library for any type of cable    www.igus-asean.com/EPLAN-download
                                                                                                                                                      ®
                                                                                                                              With the help of the chainflex  service life calculator, you can quickly and easily
                                                                                                                                                                    ®
                                                                                                                              calculate the expected service life of chainflex  cables specifically for your application:
             Get online and use all of the tools and data  www.igus-asean.com/chainflex                                             www.igus-asean.com/chainflexlife
