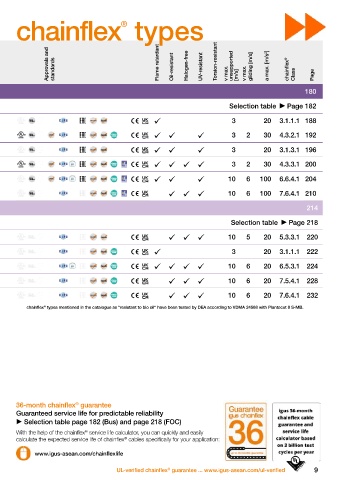

Bus ... Ethernet ... FOC chainflex types
®

chainflex ® cable Jacket Shield Minimum bend radius, e-chain ® [factor x d] Temperature, e-chain ® from/to [°C] Price index Approvals and standards Flame retardant Oil-resistant Halogen-free UV-resistant Torsion-resistant v max. unsupported [m/s] v max. gliding [m/s] a max. [m/s 2 ] chainflex ® Class Page

Bus cables 180

Guaranteed service life for these series (Details Page 28-29) Selection table Page 182

CF888 PVC 15 +5/ +70  3 20 3.1.1.1 188

CFBUS.PVC PVC 12.5 +5/ +70    3 2 30 4.3.2.1 192

CF898 iguPUR 15 -20/ +70    3 20 3.1.3.1 196

CFBUS.PUR PUR 12.5 -20/ +70     3 2 30 4.3.3.1 200

CFBUS TPE 10 -35/ +70    10 6 100 6.6.4.1 204

CFBUS.LB TPE 7.5 -35/ +70    10 6 100 7.6.4.1 210

Fibre Optic Cables 214

Guaranteed service life for these series (Details Page 28-29) Selection table Page 218

CFLK PUR 12.5 -20/ +60    10 5 20 5.3.3.1 220

CFLG88 PVC 7.5 +5/ +70  3 20 3.1.1.1 222

CFLG.LB.PUR PUR 5 -35/ +80     10 6 20 6.5.3.1 224

CFLG.LB TPE 5 -35/ +80    10 6 20 7.5.4.1 228

CFLG.G TPE 10 -40/ +80    10 6 20 7.6.4.1 232

These values are based on specific applications or tests. They do not represent the limit of what is technically feasible. chainflex types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.
®

36-month chainflex guarantee
®
Guaranteed service life for predictable reliability
 Selection table page 182 (Bus) and page 218 (FOC)
Download the EPLAN library for any type of cable www.igus-asean.com/EPLAN-download
®
With the help of the chainflex service life calculator, you can quickly and easily
®
calculate the expected service life of chainflex cables specifically for your application:
Get online and use all of the tools and data  www.igus-asean.com/chainflex www.igus-asean.com/chainflexlife
