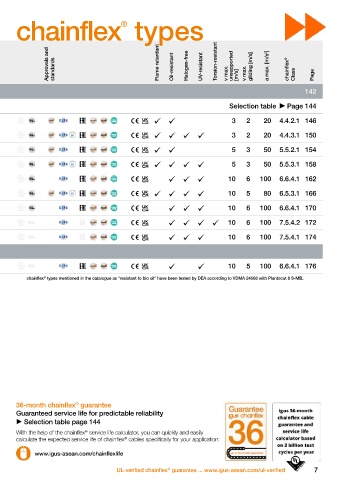

... Data ... Coax ...                                                                                                  chainflex  types
                                                                                                                                                                   ®






                                   chainflex ®     cable  Jacket  Shield       Minimum bend   radius, e-chain ®     [factor x d]  Temperature,   e-chain ®    from/to [°C]  Price index  Approvals and   standards  Flame retardant  Oil-resistant  Halogen-free  UV-resistant  Torsion-resistant  v max.    unsupported   [m/s]   v max.    gliding [m/s]  a max. [m/s 2 ]  chainflex ®     Class  Page





        Data cables                                                                                                                                                                                                                142

       Guaranteed service life for these series (Details   Page 28-29)                                                                                                                                   Selection table    Page 144


                                CF240                  PVC                    10        +5/ +70                                                                                                       3     2     20   4.4.2.1 146

                                CF240.PUR              PUR                    10        -25/ +80                                                                                                    3     2     20   4.4.3.1 150

                                CF211                  PVC                    7.5       +5/ +70                                                                                                       5     3     50   5.5.2.1 154

                                CF211.PUR              PUR                    7.5       -25/ +80                                                                                                    5     3     50   5.5.3.1 158

                                CF11                   TPE                    6.8       -35/ +100                                                                                                   10     6   100    6.6.4.1 162


                                CF112                  PUR                    10        -25/ +80                                                                                                   10     5     80   6.5.3.1 166

                                CF12                   TPE                    10        -35/ +100                                                                                                   10     6   100    6.6.4.1 170

                                CF298                  TPE                      4        -35/ +90                                                                                                   10     6   100    7.5.4.2 172

                                CF299                  TPE                     4        -35/ +90                                                                                                    10     6   100    7.5.4.1 174

        Coax cables

                                CFKoax                 TPE                     10        -35/ +100                                                                                                    10     5   100    6.6.4.1 176

                                                                                                                                       ®
            These values are based on specific applications or tests. They do not represent the limit of what is technically feasible.  chainflex  types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.

























                                                                                                                              36-month chainflex  guarantee
                                                                                                                                                   ®
                                                                                                                              Guaranteed service life for predictable reliability
                                                                                                                               Selection table page 144
             Download the EPLAN library for any type of cable    www.igus-asean.com/EPLAN-download
                                                                                                                              With the help of the chainflex  service life calculator, you can quickly and easily
                                                                                                                                                      ®
                                                                                                                              calculate the expected service life of chainflex  cables specifically for your application:
                                                                                                                                                                    ®
             Get online and use all of the tools and data  www.igus-asean.com/chainflex                                             www.igus-asean.com/chainflexlife
